BJ-TV-003
BJ

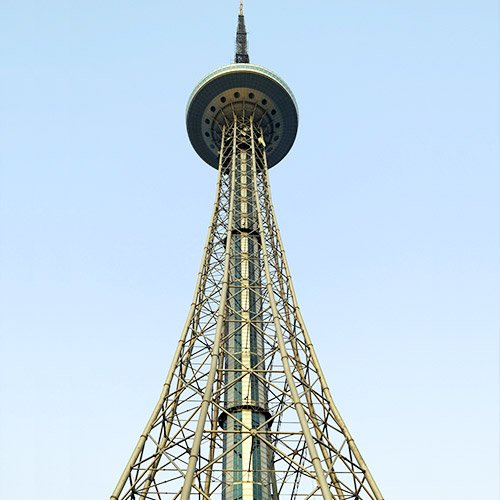

| Part No | Telecommunication Mobile Steel Tower TV |
| Height | 5m to 40m or other height customer requirement |
| Suit for | Electric Power Distribution Transmission Steel Tower |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52 |
| Strength | 2.5KN,5KN,8KN,10KN,12KN |
| Torlance of the dimenstion | +- 2% |
| Optical assembly of lighting fixture | IP 65 |
| Electroshock resistant protective grade | Grade I |
| The casing anti-corrosion performance | Class II |
| Working atmosphere of lighting fixture | -40 ºC~+45 ºC |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required |
| Joint of Poles | Insert mode, inner flange mode, face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160km/hour |
| Minimum yield strength | 335mpa |
| Minimum ultimate tensile strength | 400mpa |
| Max ultimate tensile strength | 620mpa |
| Standard | ISO9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We have past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard: AWS ( American Welding Society ) D 1.1 |
| Thickness | 1mm to 30mm |
| Production Process | Raw material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating, painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can follow by client required, each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
| Style | Size and styles are variable as per customer request |
| Part No | Telecommunication Mobile Steel Tower TV |
| Height | 5m to 40m or other height customer requirement |
| Suit for | Electric Power Distribution Transmission Steel Tower |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52 |
| Strength | 2.5KN,5KN,8KN,10KN,12KN |
| Torlance of the dimenstion | +- 2% |
| Optical assembly of lighting fixture | IP 65 |
| Electroshock resistant protective grade | Grade I |
| The casing anti-corrosion performance | Class II |
| Working atmosphere of lighting fixture | -40 ºC~+45 ºC |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required |
| Joint of Poles | Insert mode, inner flange mode, face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160km/hour |
| Minimum yield strength | 335mpa |
| Minimum ultimate tensile strength | 400mpa |
| Max ultimate tensile strength | 620mpa |
| Standard | ISO9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We have past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard: AWS ( American Welding Society ) D 1.1 |
| Thickness | 1mm to 30mm |
| Production Process | Raw material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating, painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can follow by client required, each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
| Style | Size and styles are variable as per customer request |
